FT-8200
直接聯系
寧波瑞柯微智能科技有限公司
浙江寧波
面議
ROOKO
FT-8200
3225
200kg
精度高，測試重復性好，自動得出結果。
科研院
大小

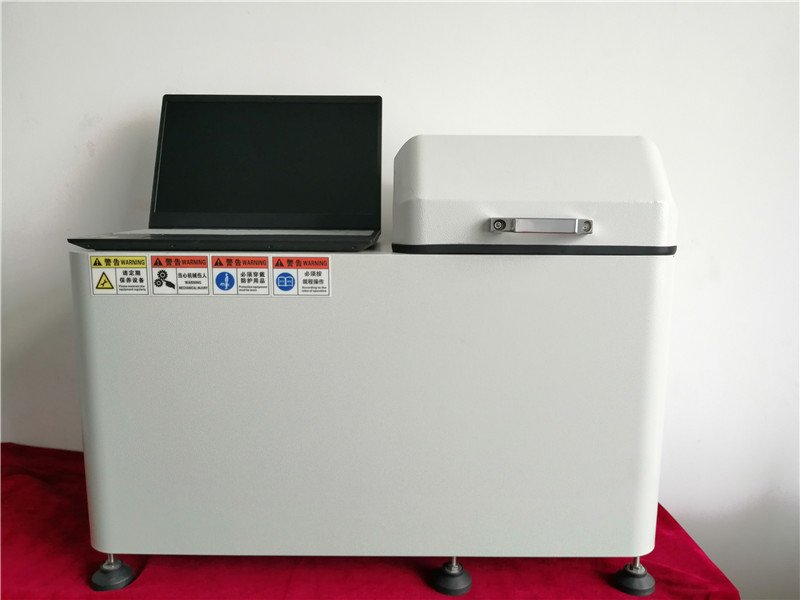

雙電四探針?lè)勰╇娮杪蕼y(cè)試系統
FT-8200 Double current four probe powder resistivity test system
一、功能概述：Functional overview
測量到-5次方或-6次方，采用集成電路模塊； USB，232通訊接口，直流恒流源 ，提供四點探針?lè)y(cè)量模式，采用PC軟件操作，粉體壓縮前及壓縮后壓力增減過程中粉體因自身特性內聚力反彈形變或恢復過程變化曲線圖譜；自動測試過程數據曲線及圖譜分析，實時分析壓強/壓力與電阻，電阻率，電導率的變化關系，及報表生成，存儲，打印等；
A high precision integrated circuit module is used for the measurement range, wide range of sheet resistor. the smallest measure to the minus 5 or the negative 6 power.Intelligent integration structure design, the overall generous, USB, 232 communication interface, high precision constant DC constant current source, and provide four point probe method and four-terminal method two measurement modes coexist, fully use the PC software operation, the process of automatic test data curve and spectrum analysis, real-time analysis of pressure/pressure and resistance, resistivity, and the changes of conductivity and report generation, storage, printing, etc
雙電四探針?lè)勰╇娮杪蕼y(cè)試系統
二、參照標準：Meet Standard
1）四探針測試儀參照GB/T 1551、GB/T1552-1995，ASTM F84美國A.S.T.M 標準。
The four-probe tester meets GB/T 1551, GB/t1552-1995, ASTM F84 U.S. A.S.T.M standard.
2）四探針?lè)ǚ勰y(cè)試平臺參照GBT 30835-2014《鋰離子電池用炭復合磷酸鐵鋰正極材料》中關于粉末電導率的測定方法中用于仲裁方法的四探針?lè)ㄒ笾谱?
Four point probe method test platform based on GBT powder 30835-2014 “The lithium ion battery with carbon compound lithium iron phosphate cathode material "method for determination of the conductivity of powder in four point probe method for arbitration method in the request.
雙電四探針?lè)勰╇娮杪蕼y(cè)試系統
三、適用范圍：Scope of application
用于鋰離子電池用炭復合磷酸鐵鋰正極材料電阻率的測量；也應用于需要采用四探針?lè)y(cè)量的導體或半導體粉末材料的分析與檢測；用于石墨類粉狀材料電阻率的測量；應用于企業品質檢測；研發部門，大中專院校；科研院所；及質量檢測機構.
Widely used in the measurement of resistivity of lithium anode materials used in lithium ion batteries.It also applies to the analysis and detection of a conductor or semiconductor powder material that needs to be measured by four probes.Measurement of resistivity of graphite powder materials;It is widely used in domestic and foreign enterprise quality testing.The research and development department, the college of major and secondary schools;Research institutes and Quality monitoring organization.
四、參數資料Parameters
規格型號/ Specification model | FT-8200A | FT-8200B | FT-8200C | FT-8200D |
1.方塊電阻范圍sheet resistance range | 10-5～2×105Ω/□ | 10-6～2×105Ω/□ | 10-4～2×104Ω/□ | 10-4～1×107Ω/□ |
2.電阻率范圍 resistivity range | 10-6～2×106Ω-cm | 10-7～2×107Ω-cm | 10-5～2×105Ω-cm | 10-5～2×108Ω-cm |
電導率范圍Conductivity range | 5×10-6～106ms/cm | 5×10-7～107ms/cm | 5×10-5～105ms/cm | 5×10-8～105ms/cm |
3.測試電流范圍 test current range | 0.1μA ，1μA，10μA，100μA，1mA，10mA，100 mA | 10μA，100μA，1mA，10mA，100 mA、1000mA | 0.1μA ，1μA，10μA，100μA，1mA，10mA，100 mA | 10mA ---200pA |
4.電流精度current | ±0.1% accuracy | ±2% | ||
軟件界面
| 電阻、電阻率、方阻、溫度、單位切換、溫度系數、電流、電壓、探針形狀、探針間距、厚度 、電導率、圖譜顯示，壓力設定，壓強，報表導出，波形刷新，時間設定，啟動、停止、運行 resistance, resistivity, sheet resistance, temperature, unit conversion, temperature coefficient, current, voltage, probe shape, probe spacing, thickness, conductivity. Graph shows, pressure setting, pressure, report export, waveform refresh, time setting, start, stop, run | |||
6.測試方式Test method | 雙電組合測量ordinary single electrical measurement | |||
7.模具選購mold: | 模具mold：內徑inner diameter 10mm； 20mm；高h(yuǎn)eight 25mm ；（選購choose to buy） | |||
8.壓力pressure: | 壓力Pressure: 0-200kg Choose to buy | |||
9. 模腔行程： Die cavity stroke: | 0-20mm（樣品壓實厚度建議在4mm內） （Sample compaction thickness is recommended in 4mm） | |||
10. 樣品高度Sample height
| 樣品高度范圍：0.000-10.000mm，測量分辨率0.001mm，可測樣品壓縮厚度0.1mm | |||
11. 恒壓時間： time: | 0-99.9s | |||
12.溫濕度范圍Temperature and humidity | 常溫-50度；濕度：20%-98%/ Room temperature -50 degrees, humidity：20%-98% | |||
13. 標配標準件Standard Parts | a.標準校準電阻1個；b.標準高度校準件1個 | |||
14. 測試方Test mode | a.四點探針?lè)?Four - point probe method b.自動測量Automatic measurement | |||
15. 加壓方Pressurized | 自動Automatic | |||
16. 脫模方式Stripping | 自動Automatic | |||
17.電極材質Electrode | 銅針Copper material | |||
18.吸塵系統 | 外置吸塵處理External dust treatment | |||
19.誤差： errors | 3%； 重復性誤差2%以內（平均性誤差，人為因數外）average error, except human factor 注明FT-8200D ≤5%-10%以內（因材料差異不同影響） | |||
20.工作電源: Power supply | 輸入: AC 220V±10% ,50Hz ：60W | |||
21. 標配外選購 Others buy | a.電腦和打印機依據客戶要求配置； b.計量證書1份 c.水分儀 d.真密度儀 a. computers and printers based on customer configuration requirements. b. Measurement certificate 1. c. moisture meter d. true density meter | |||
