微電極放大器，是高增益AC/DC微分放大器，可用于低噪聲的可興奮組織的細胞外記錄、EEG、EKG等記錄。

Model 3600型 微電極放大器產品主要特點及參數：

11 gain settings from x2 to x20，000

8 high-pass filter settings from 0.3 Hz to 500 Hz

8 low-pass filter settings from 100 Hz to 20.0 kHz

TTL Control of instrument mode

Channel Monitors

Built-In Calibration signal

Common Reference Bus

Blanking

PC control capability

MATLAB® and LabVIEW SDK and drivers available

3U rackmount enclosure accommodates all 16 channels

Headstages for Model 3600 16-Channel Amplifier

16-Channel Stimulating & Recording Headstage

For simultaneous stimulation and recording on any combination (or all) of the 16 channels when paired with our Model 3600 Amplifier. Capped in the Omnetics Corporation nanominiature connectors， we can provide adapters for use with other electrode configurations， including the Michigan Probe. This headstage uses fast switching relays (microsecond switching times， not milliseconds!) to control signal paths between stimulating and recording modes.

Includes built-in recording output cable. Optional Stimulation control cable (#962050) is required to operate stimulation functions. Max current is 20 mA， with a ±10V voltage range.

16-Channel Record-Only Headstage

Microminiature x20 headstage with 16 amplified channels and an amplified reference electrode channel. The entire headstage is roughly the size of a penny， and features 0.025" connector spacing using Omnetics Corporation nanominiature connectors.

Does not include a recording output cable. Order #961150 Output Cable.

Input options include direct connections to electrodes or to a connector with small input leads (Product 963000). Adapters are available for the "Michigan Probe DIP electrode (Product 963200) or a larger pin connector (Product 963100). Please contact us for details.

Model 3600 Control Software

The Model 3600 is supplied with optional Windows control software. This software controls all features of the amplifier via a USB port (cable included).

The program also enables the storage of an unlimited number of 16-Channel parameter files， as well as provides a real-time notepad that logs changes in parameter settings or experimenter-added notations.

根據需求，還有其他多個型號可供選擇：

Model 1800型 微電極放大器產品主要特點及參數：

2道交流放大器，相當于2臺放大器

探頭適用于高阻抗玻璃或金屬電極的細胞外記錄和刺激

低噪聲：1.0μV（peak-peak）

輸入阻抗：1011Ω

增益：100、1，000、10，000

具有低通、高通濾波以及50/60Hz帶阻濾波

電壓輸出范圍：±8V

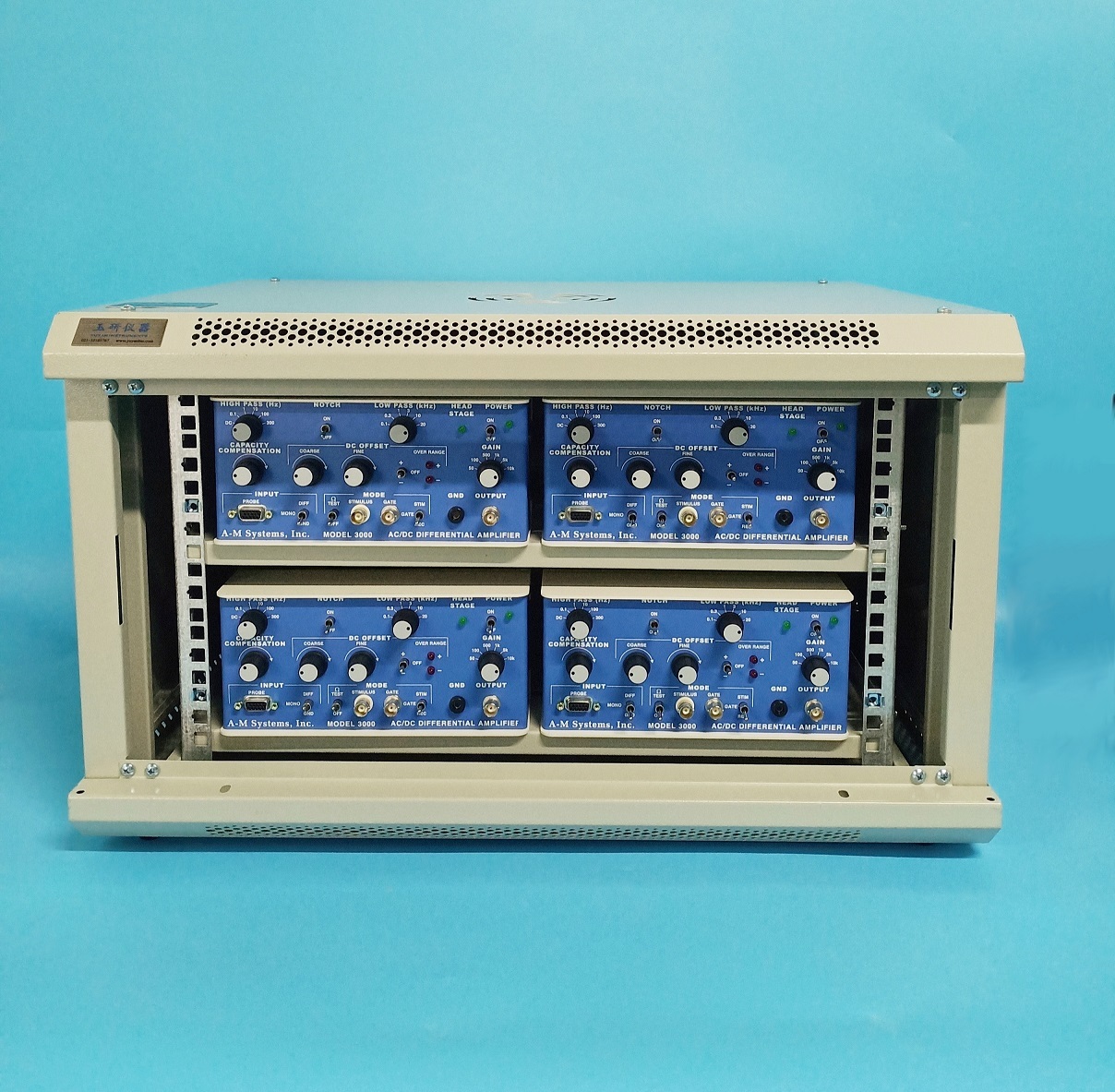

Model 3000型產品主要特點及參數：

單道交流放大器

選擇Stimulus模式，外部刺激器可輸入刺激信號

Recording模式和Stimulus模式都可通過計算機控制

輸入阻抗：10¹⁵Ω

增益：50-10，000

電容補償：4-50pF

具有低通、高通濾波和帶阻濾波

直流失調電位補償：±250mV

體積小，可放置于屏蔽網內

噪聲：1.8μV， p-p（10Hz-10kHz); 0.1fA/Hz

Model 1700型 微電極放大器產品主要特點及參數：

4道微分交流放大器，相當于4臺放大器

低噪聲：1.0μV（peak-peak）

輸入阻抗：1011Ω

增益：100、1，000、10，000

具有低通、高通濾波以及50/60Hz帶阻濾波

電壓輸出范圍：±8V

Model 3500型 微電極放大器產品主要特點及參數：

13 gain settings from x2 to x20，000

8 high-pass filter settings from 0.3 Hz to 500 Hz

8 low-pass filter settings from 100 Hz to 20.0 kHz

TTL Control of instrument mode

Twin stimulation busses to pass current

Channel Monitors

Built-In Calibration signal

Common Reference Bus

Blanking

PC control capability

MATLAB® and LabVIEW SDK and drivers available

3U rackmount enclosure accommodates all 16 channels

Model 3500 Control Software

The Model 3500 is supplied with optional Windows control software. This software controls all features of the amplifier via a USB port (cable included).

The program also enables the storage of an unlimited number of 16-Channel parameter files， as well as provides a real-time notepad that logs changes in parameter settings or experimenter-added notations.

請關注玉研儀器的更多相關產品。

如對產品細節和價格感興趣，敬請來電咨詢！
